About this item

• Digital Capacitor Discharger for Maintenance of Electric Appliances: The digital capacitor discharger is designed to discharge capacitors (10-1000V) of electric appliances such as household appliances, digital cameras, mobile phones, cars, TVs, etc., in maintenance operations. It is an essential maintenance tool for electric appliances.
• Safety-First Design for Secure Discharging: Designed with safety in mind, this Digital Capacitor Discharger discharges high direct current to a safe range to ensure there is no risk of electric shock. It effectively avoids electric shock, and short circuits, providing a safe discharge tool for professionals.
• Volt Meter Display for Real-Time Monitoring: This Digital Capacitor Discharger built-in volt meter display shows the voltage change during the discharging process. When the volt meter turns off, the discharge is completed, allowing users to monitor voltage discharging with ease.
• No Polarity, No Sparking, Constant Current Discharge: The Digital Capacitor Discharger features no polarity discharge and no sparking discharge, ensuring smooth operation. With constant current discharging, it provides safe and efficient capacitor maintenance, making it a reliable voltage discharging tool.
• Not suitable for Discharging Electrostatic Double-Layer Capacitors: This quick Capacitor Discharger cannot be used to discharge electrostatic & battery capacitors. It is designed for high voltage constant current discharge.

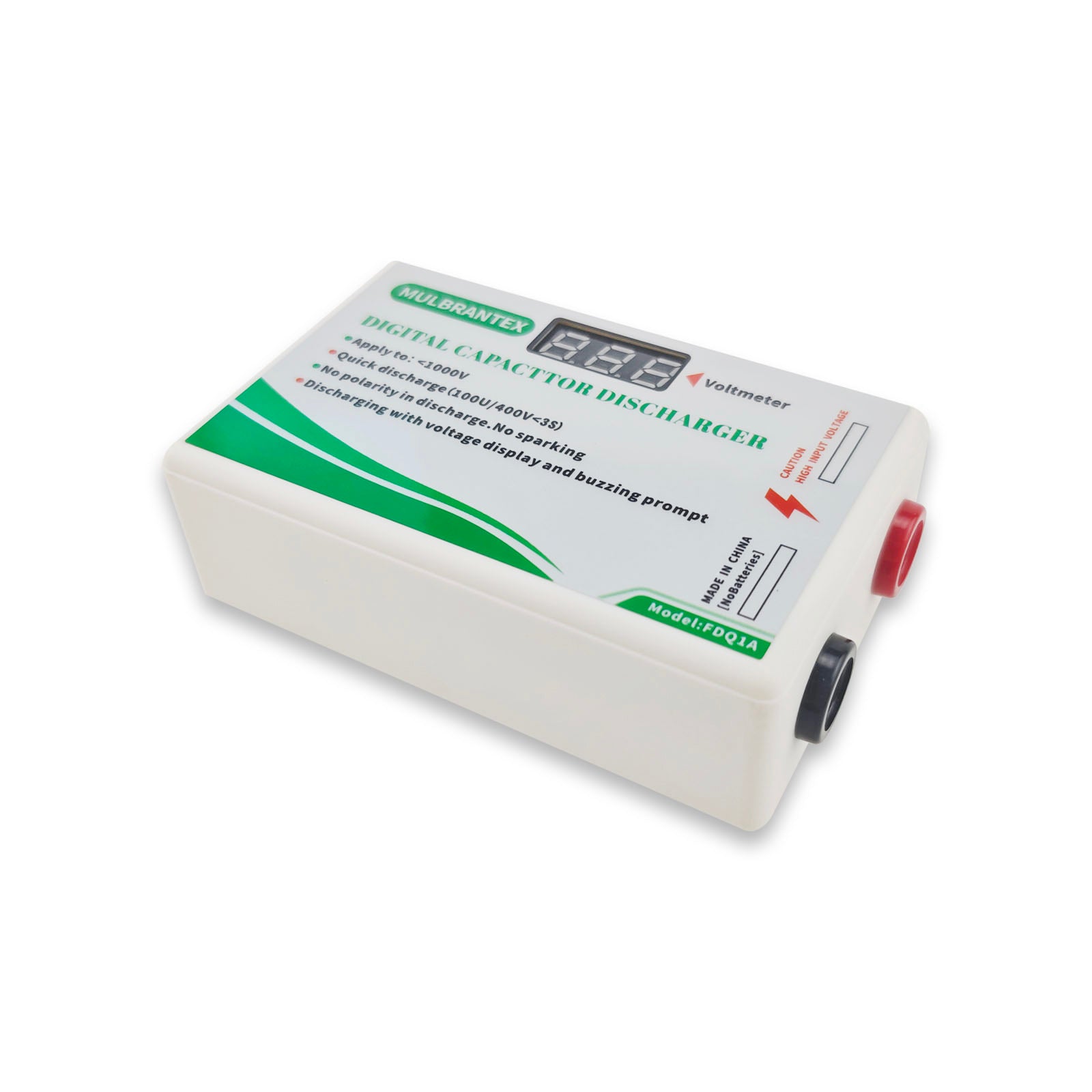

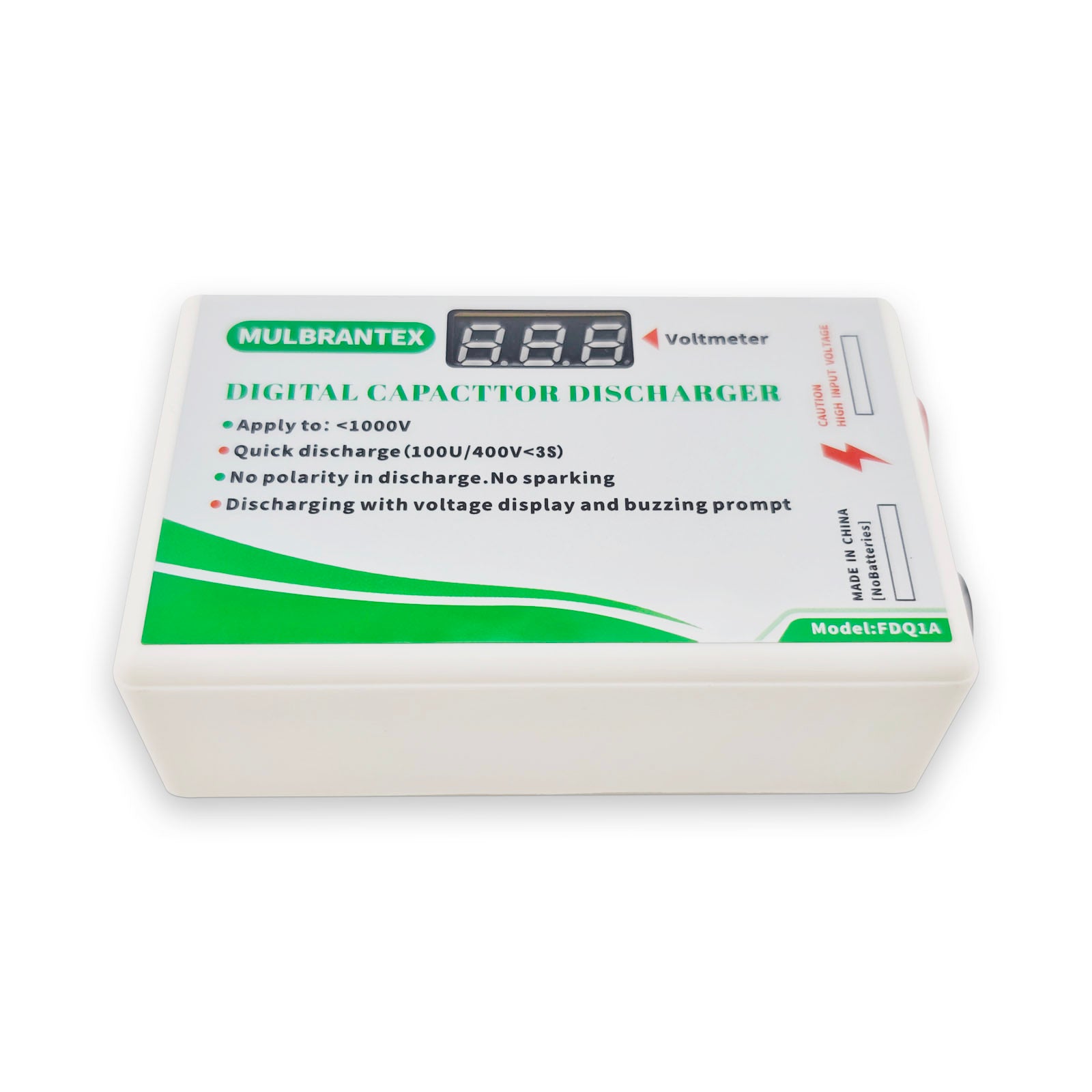

  Model: FDQ1A

  Apply to:<1000V

  Quick Discharge:(100U/400V, <3S)

  Tester Size: 95mm*58mm*31mm

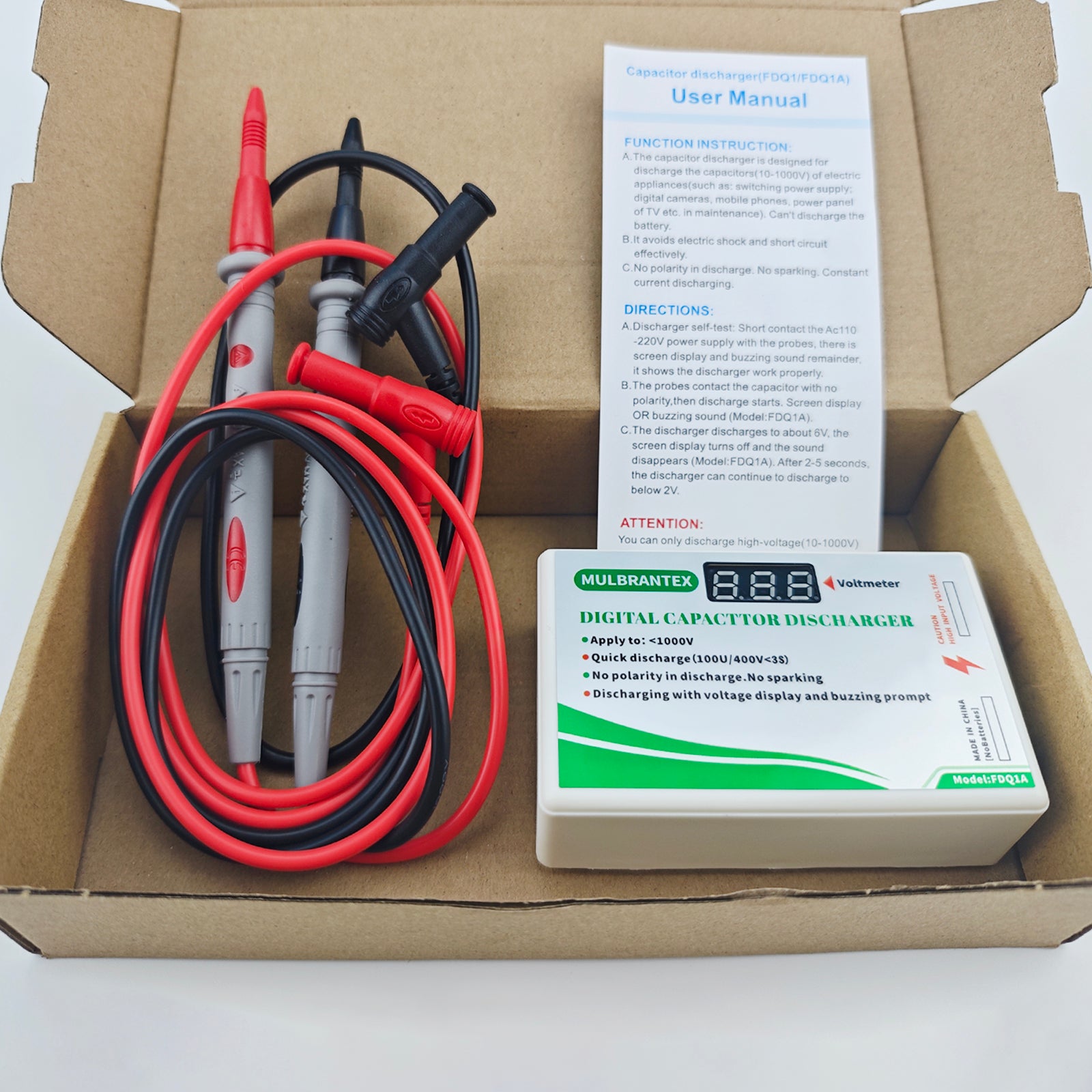

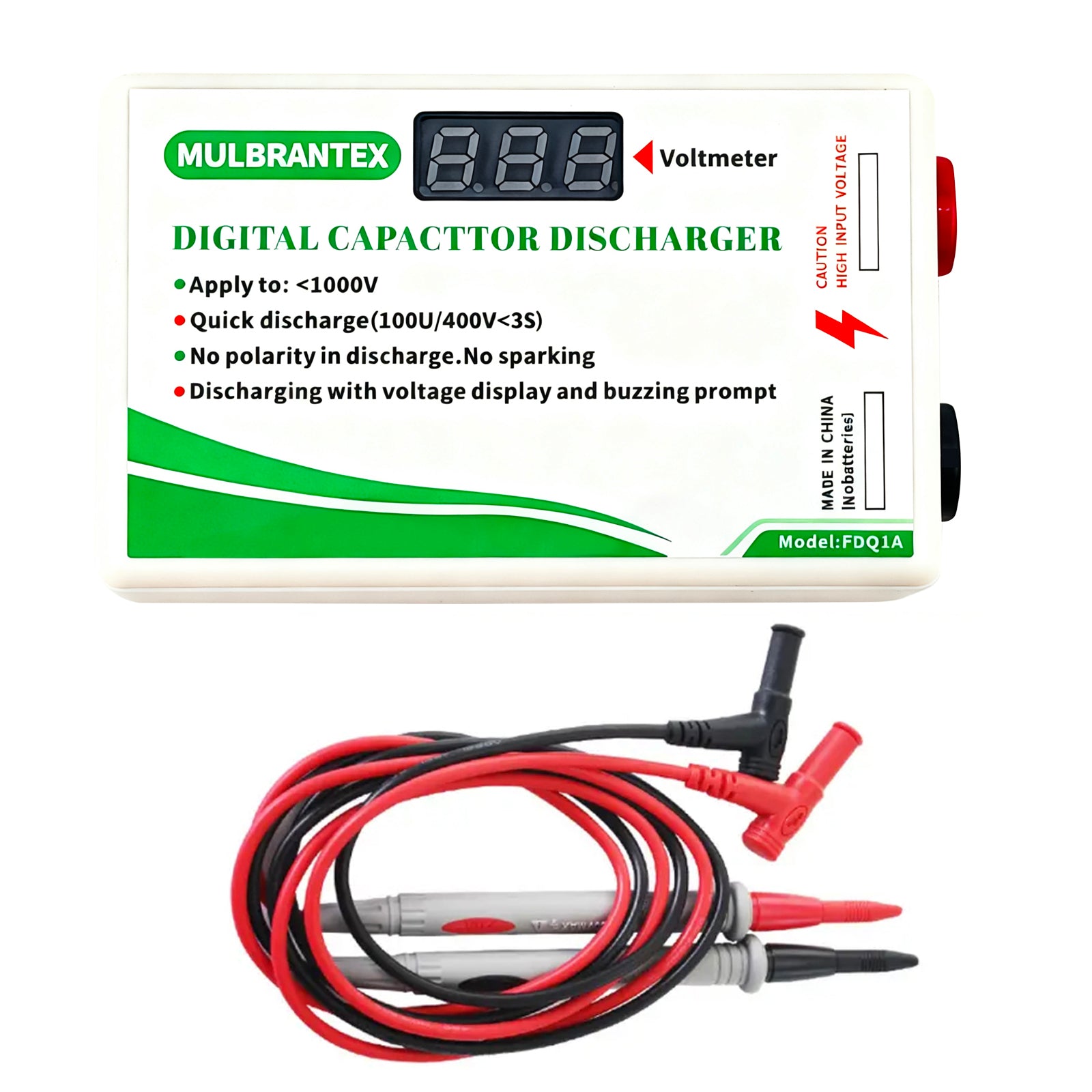

  Package List:1x Digital Capacitor Discharger,1x Test Probes (black and Red),1x User Manual

  Weight: 6.84 Ounces



  FUNCTION INSTRUCTION

  A.The capacitor discharger is designed for discharge the capacitors(10-1000V) of electric appliances (such as: switching power supply; digital cameras, mobile phones, power panel of TV etc. in maintenance). Can't discharge the battery.

  B.It avoids electric shock and short circuit effectively.

  C.The voltmeter can display the voltage change during discharge. When the voltmeter is off, the discharge is completed.

  D.No polarity in discharge.No sparking.

  E.Constant current discharging.



  DIRECTIONS

  A.Discharger self-test: Short contact the AC110-220V power supply with the probes, there is screen display and buzzing sound reminder, it shows the discharger work properly.

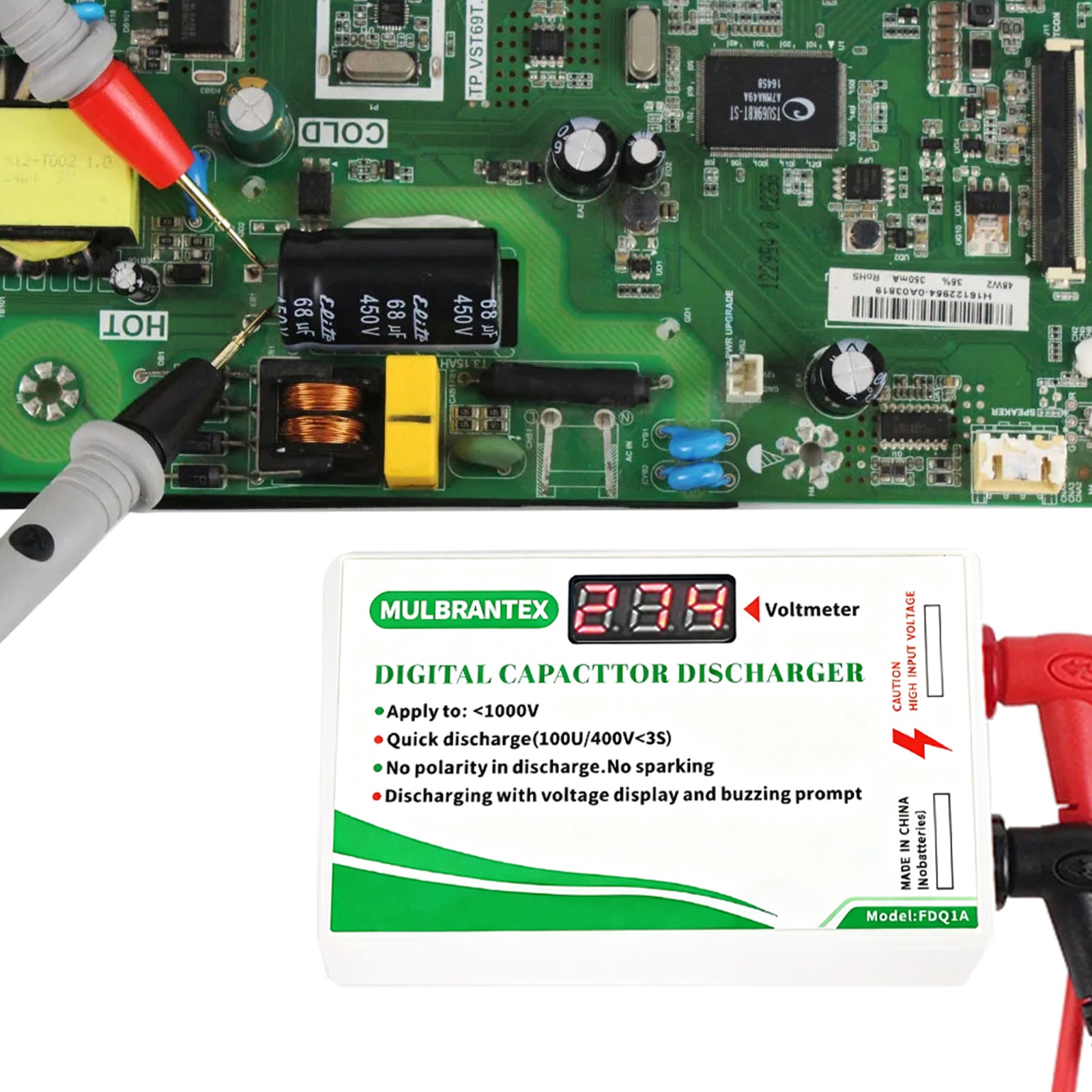

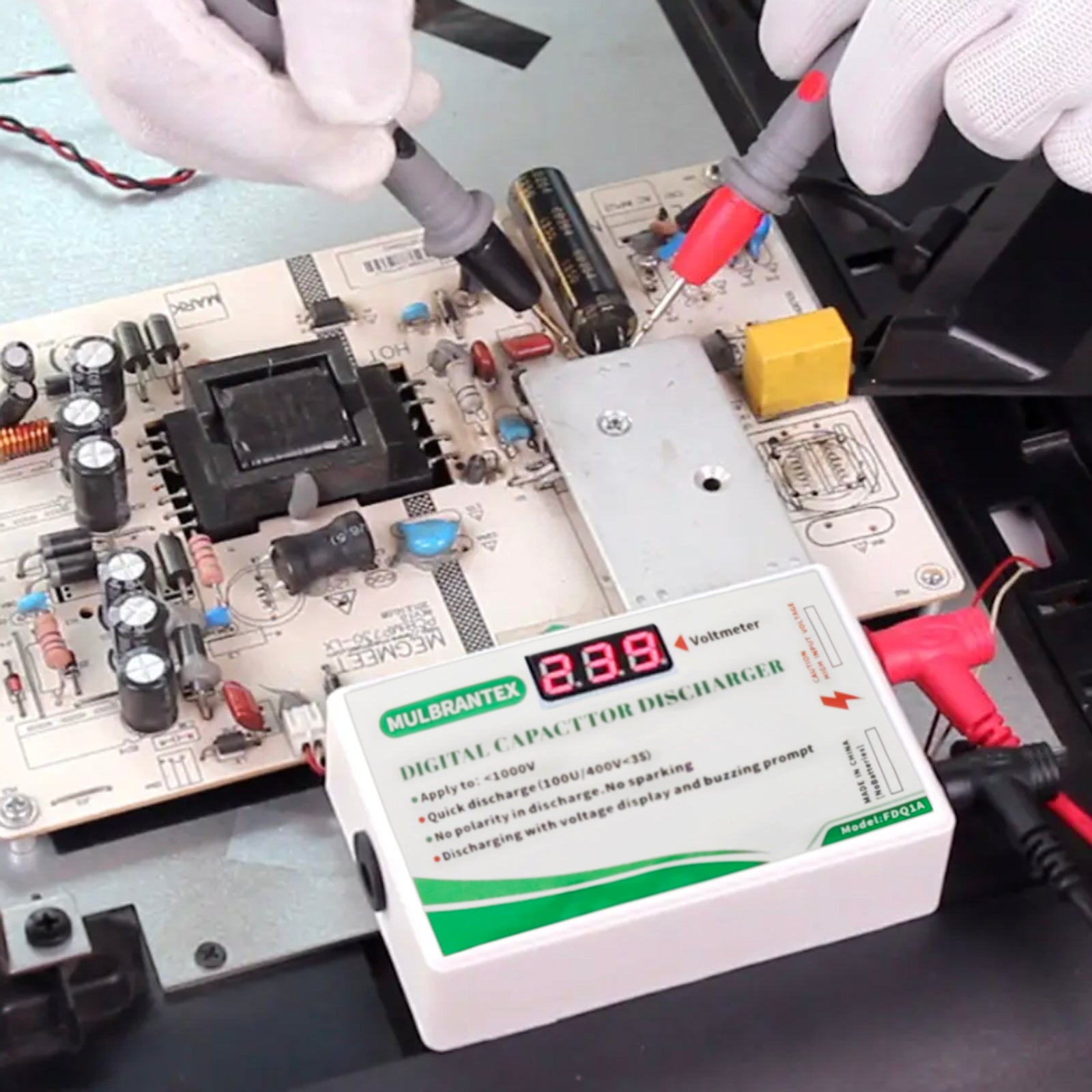

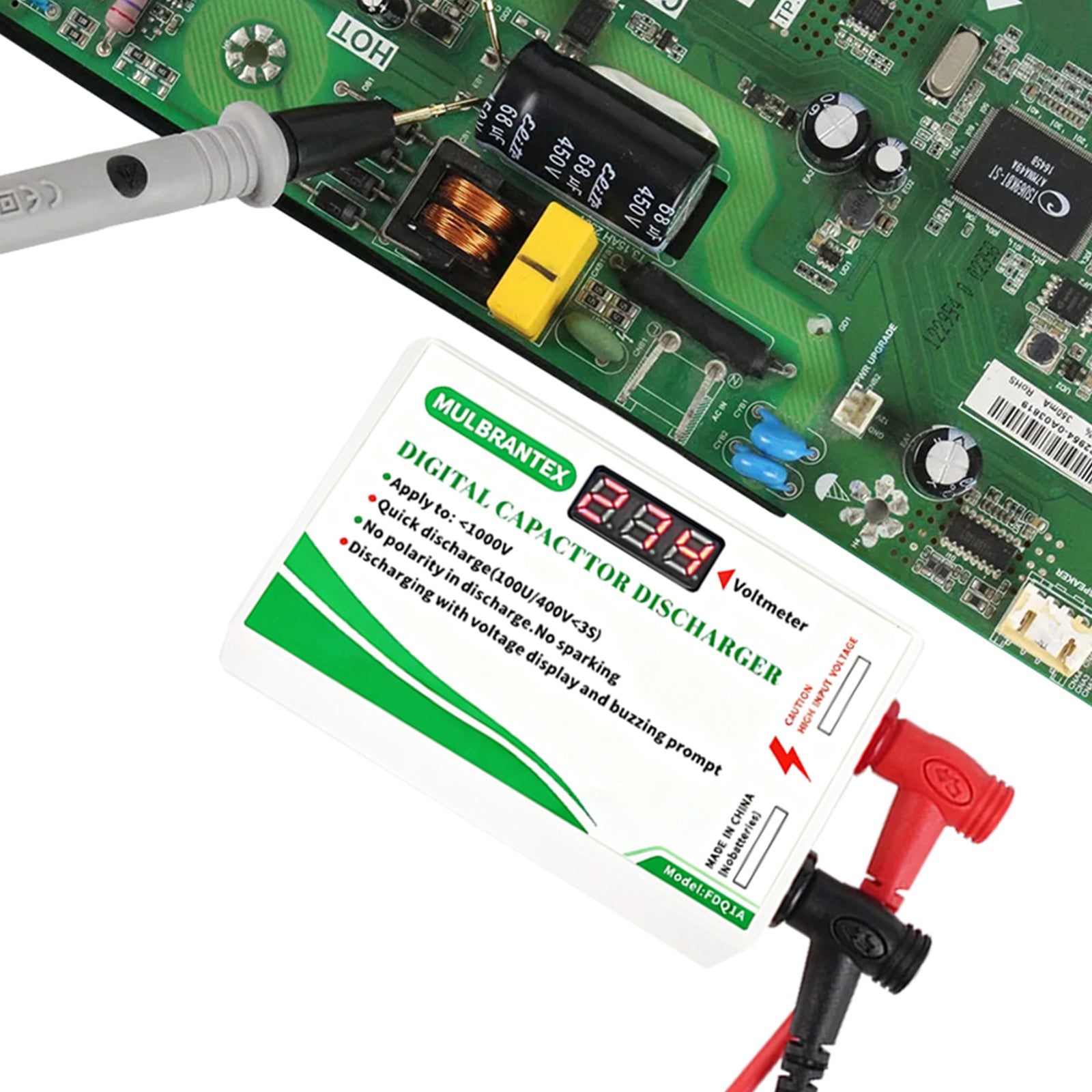

  B.The probes contact the capacitor with no polarity, then discharge starts. Screen display OR buzzing sound.

  C.The discharger discharges to about 6V, the screen display turns off and the sound disappears. After 2-5 seconds, the discharger can continue to discharge to below 2V.



  NOTE

  You can only discharge high-voltage(10-1000V) capacitors offline, and cannot be used as an electronic load (Do not discharge while charging). Can’t discharge for Electrostatic double-layer capacitor.
